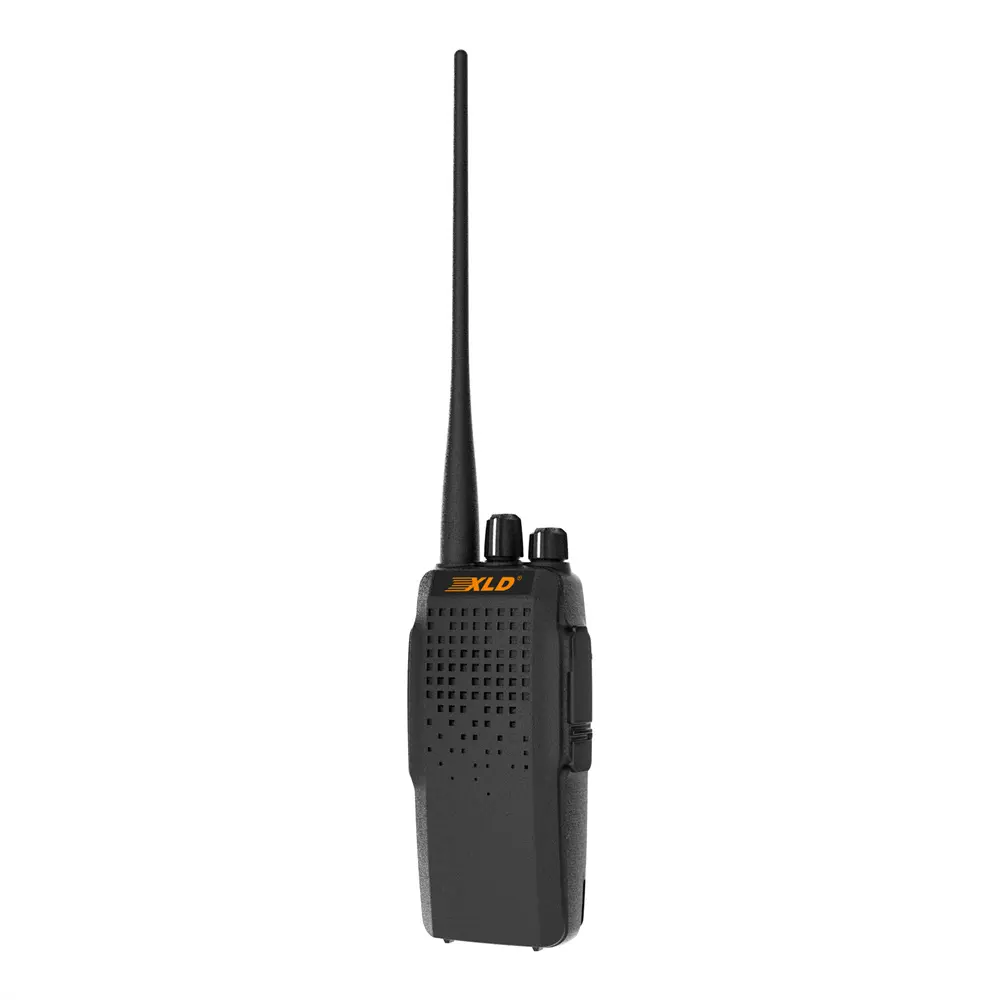

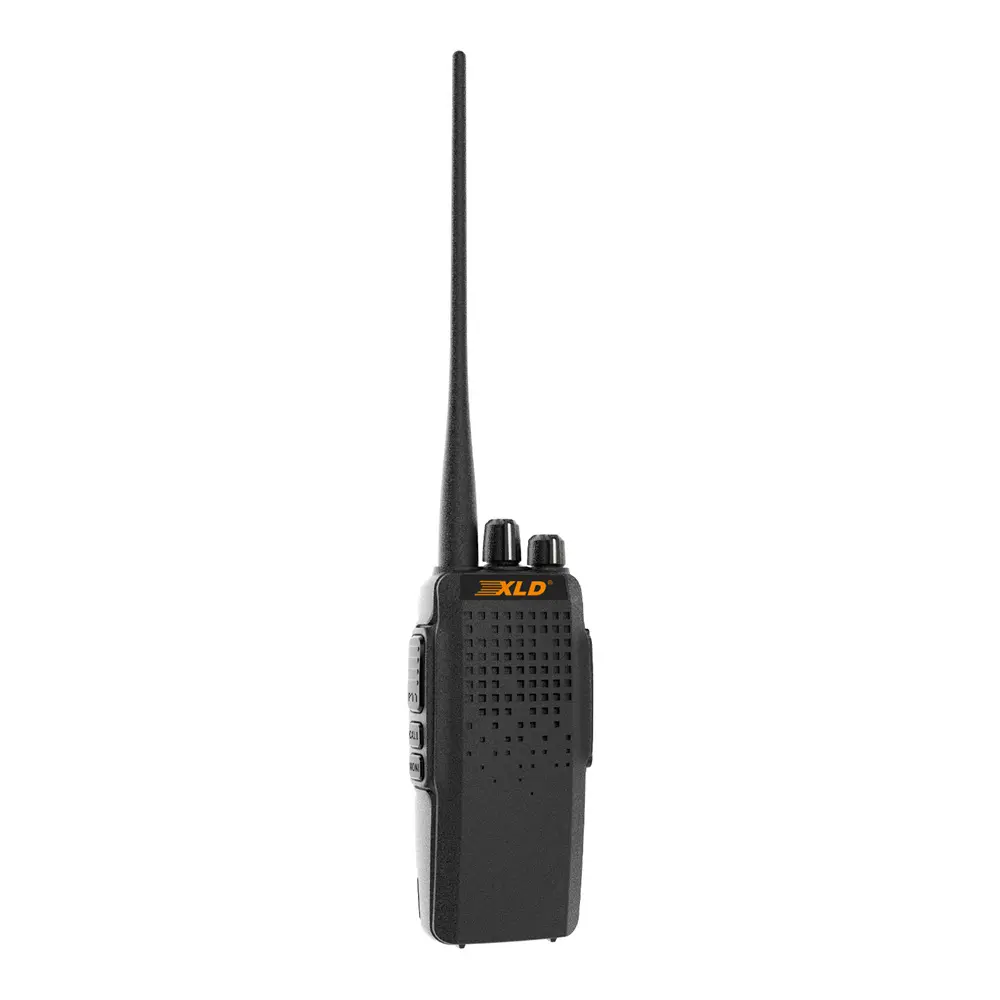

Flagship Model Handheld Radio
Split Durable Antenna
The split durable antenna of the handheld radio allows for better signal reception and transmission even in difficult environments. The two parts of the antenna can be separated for convenient storage and transportation.
Interference Suppression Function
The interference suppression function of the radio enables it to reduce or eliminate noise caused by external factors such as other radios. This makes communication clearer and more reliable.
Companding Function
The companding function compresses the audio signal before transmission and expands it upon reception. This results in improved audio quality and greater clarity in communication.
Code Protection
The code protection feature ensures the privacy and security of communication by restricting access to the radio to authorized users only. This prevents unauthorized individuals from listening in on conversations.
Power Saving Function
he power saving function of the radio allows it to conserve energy and extend battery life. This is achieved through automatic shutoff, low power modes, and other features that reduce power consumption.
Wide Frequency Range
The device provides a frequency range of 400-480MHz, which makes it suitable for various applications and environments.With a wide frequency range, the handheld radio can be used in various environments and for different applications that require different frequencies.
Stable Frequency
The radio's frequency stability of ±2.5PPM ensures that the transmission frequency remains stable and consistent, even during prolonged use.
| Frequency Range |
400-480MHz |
Modulation Mode | 16KcF3E/11KcF3E |
| Frequency Stability |
±2.5PPM |
Maximum Frequency Deviation | ≤5KMHz/≤2.5KMHz |
| Stable Voltage |
DC7.4V |
Adjacent Channel Power | ≥-65dB/≤-60dB |
| Channel Capacity |
16 |
Spurious Power | ≤7.5uW |
| Antenna Configuration |
Inductive Antenna |
Transmission Current | ≤1.5A |
| Antenna Impedance |
50Ω |
Modulation Sensitivity | 8-20mV |
| Operating Mode |
Same-frequency simplex or different-frequency simplex |
Modulation Distortion | <5% |
| Dimensions |
1426443mm (excluding antenna) |
Audio Power | 0.5W |
| Output Power |
16W |
|
Charging Kit |
![]() |
|
Battery |
![]() |
|
Belt Clip |
![]() |
|
Lanyard |
![]() |
