Analog Walkie Talkie

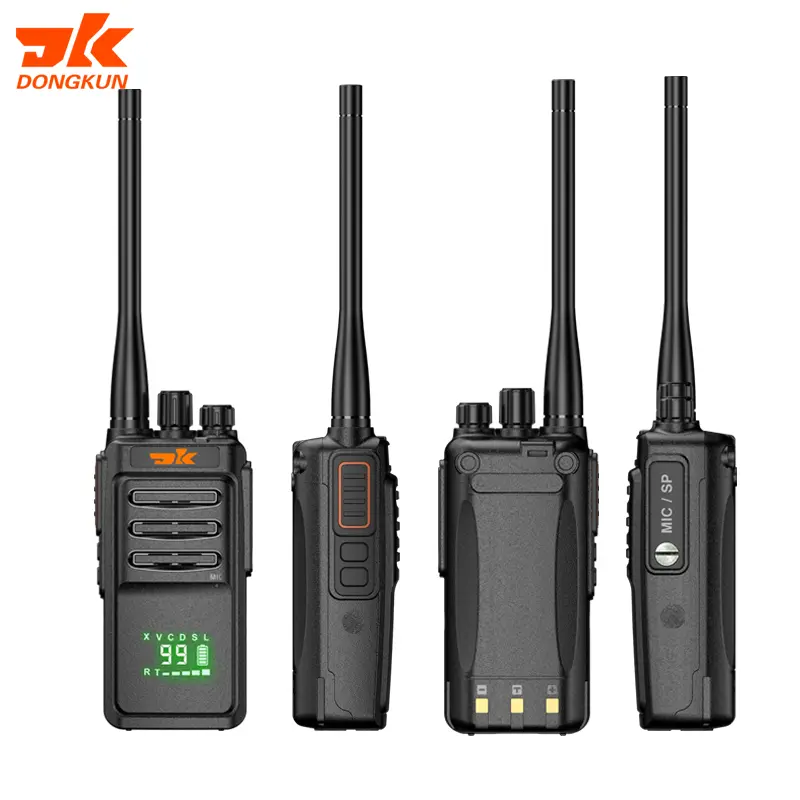

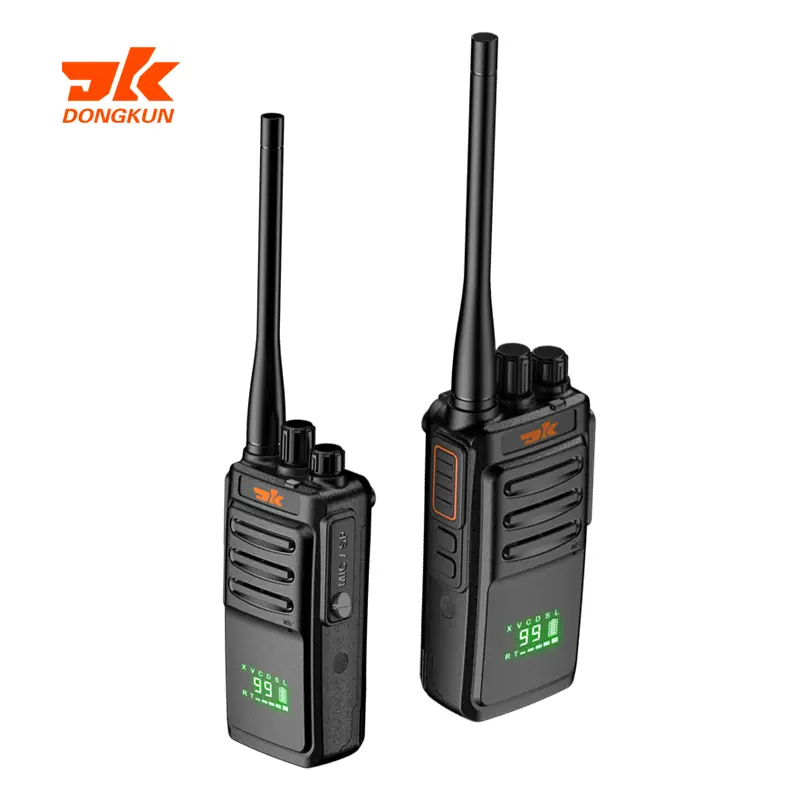

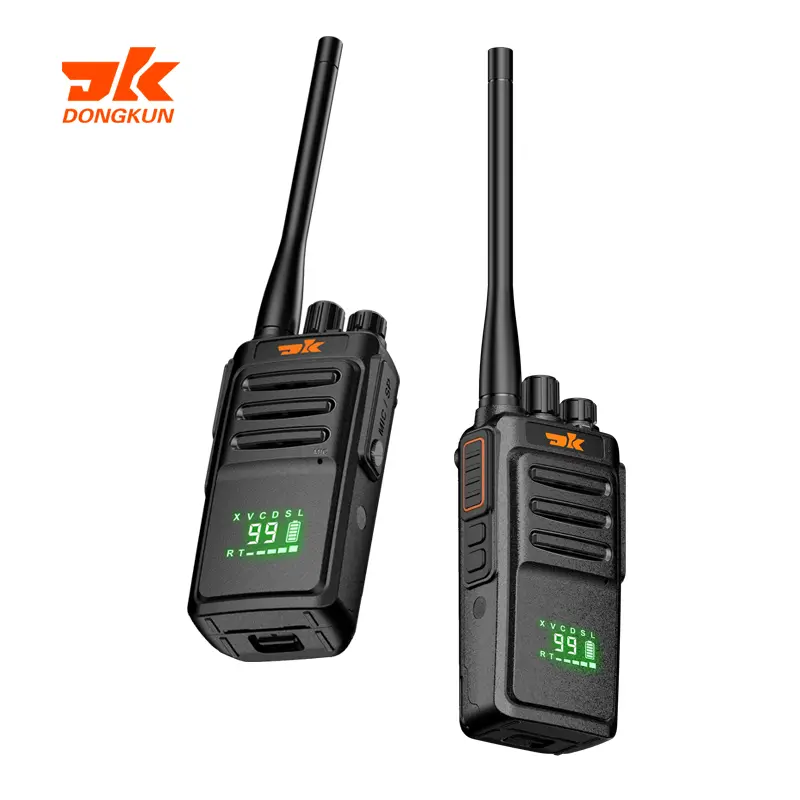

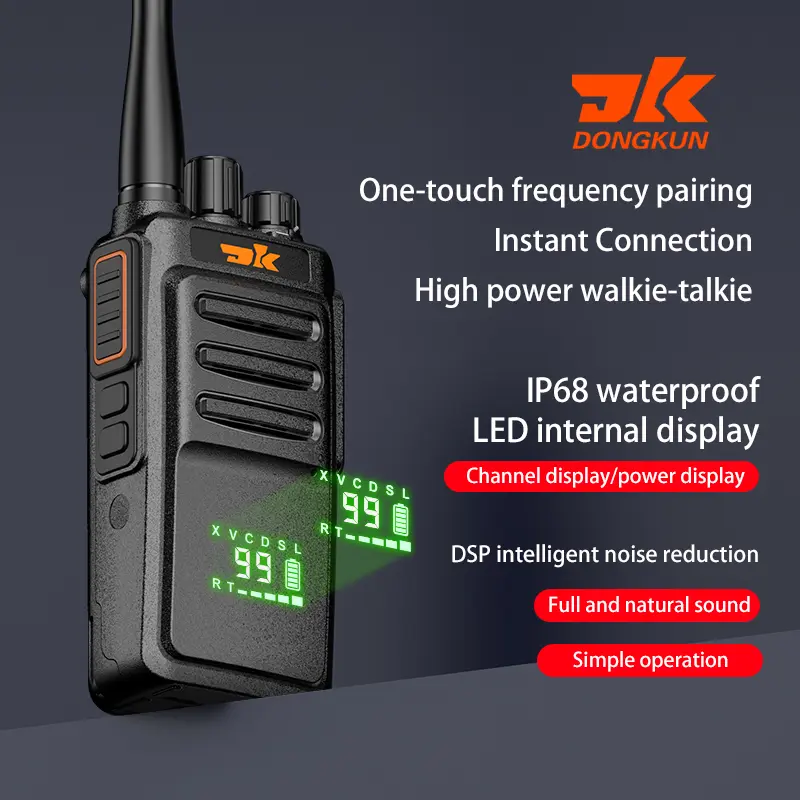

Handheld 10W DK-H6 Two-Way Radio Custom Wireless Full Band Talkie-Walkie with Long Ran Battery Operated
10W High Power Output
This feature significantly enhances communication range and signal penetration, making it ideal for expansive environments such as construction sites or outdoor events. Users benefit from reliable connectivity even in challenging conditions.
PC Read-Write Frequency Encryption
This capability allows users to securely program frequencies and settings via a computer, ensuring confidential communications and protecting sensitive information from unauthorized access.
Low Power Warning
Users receive timely alerts when battery levels drop, helping to prevent unexpected communication failures during critical operations.
Power Saving Function
The device intelligently reduces power consumption during inactivity, maximizing battery life for extended use between charges, which is particularly useful in long-duration events.
Bilingual Voice Guide
Voice prompts are available in both English and Chinese, enhancing accessibility and usability for a diverse range of users.
Special Signal Capability
Users can customize specific signaling and alerts, improving operational communication for various scenarios, including emergencies.
Group Call Function
Facilitates simultaneous communication among multiple users, promoting better teamwork and quicker decision-making in dynamic environments.
99 Channels
With the ability to switch between 99 channels, users can adapt to changing operational needs and manage multiple communication lines effectively, ensuring clear and uninterrupted communication.
| Frequency Range | 430-440 MHz | Pre-emphasis Characteristics | 6 dB |
| Frequency Stability | +2.5 PPM | Transmit Current | <1.5 A (at 5W) |
| Operating Voltage | DC 7.4V | CTCSS/DCS Deviation | 0.5 KHz ± 0.1 KHz (wide), 0.4 KHz ± 0.1 KHz (narrow) |
| Channel Capacity | 16 Channels | Modulation Sensitivity | 8-20 mV |
| Antenna Configuration | Loaded antenna | Modulation Distortion | <5% |
| Antenna Impedance | 50Ω | RF Sensitivity | -122 dBm (12 dB SINAD) |
| Working Mode | Simple or semi-duplex | Audio Power | 1W |
| Dimensions | 138 x 60 x 34 mm (excluding antenna | Audio Distortion | <7% |
| Output Power (High/Low) | 5W | Blocking | >85 dB |
| Modulation Mode | 16KCF3E/11KCF3E | Intermediation (Wide/Narrow Band) | >60 dB (wide), >55 dB (narrow) |
| Maximum Frequency Deviation | <5 KHz (wide), <2.5 KHz (narrow) | Selectivity (Wide/Narrow Band) | >65 dB (wide), >60 dB (narrow) |
| Adjacent Channel Power | <-65 dB (wide), ≤-60 dB (narrow) | Spurious Rejection | >65 dB |
| Spurious Radiation | <7.5 µW |
|
Charging Kit |
 |
|
Battery |
 |
|
Belt Clip |
 |
|
Lanyard |
 |
